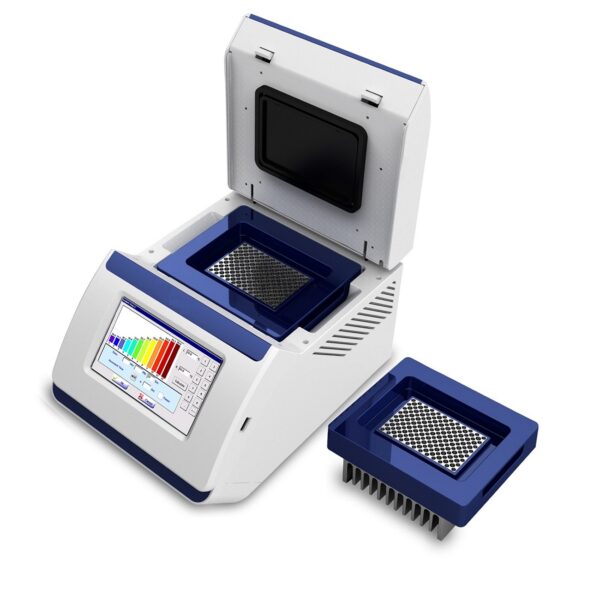

A100/A200 Touch Screen PCR Analyzer

Experience precision and convenience with the Touch Screen PCR Analyzer A100/A200. Featuring an intuitive touch screen interface, this analyzer offers seamless operation for PCR analysis. With advanced features and reliable performance, the Touch Screen PCR Analyzer A100/A200 delivers accurate results for a variety of molecular biology applications. Streamline your workflow and elevate your research with the versatile A100/A200 PCR analyzer.


Touch Screen PCR Analyzer A100/A200


7” Color Full Touch Screen, real time graphical display

Effortlessly Interchangeable Modules Swapped in Seconds without Tools.

Durable Premium Peltier Element. Ensure Long Life and High Quality.

Larger Storage of 10,000 Programs on Board Enhancing Friendly Operation.

Updated Software through USB Flash Drive

Outstanding Block Temperature Uniformity Ensuring Best Possible Experimental Results.

Global Adaptable Switch Power(100V-240V), Increasing Safety and Reliability Level

Technial Specifications

Optional Module A100 Standard Thermal Cylcer A200 Gradient Thermal Cylcer
 Optional Module 96 Module:96wells×0.2ml


9677 Module:96wells 0.2ml+77wells×0.5ml


Multi-purpose Module: 9677 Module + In-situ Adapter


384 Module:384wells

96 Module:96wells×0.2ml


9677 Module:96wells 0.2ml+77wells×0.5ml


Multi-purpose Module: 9677 Module + In-situ Adapter


384 Module:384wells

Display 7” Color Touch Screen, real-time graphical display
Communications Ports 2 USB and 1 LAN
Block Temperature Range 0℃~105℃
Max. Heating Rate 5℃/s
Max. Cooling Rate 4℃/s
Temperature Uniformity ≤±0.2℃
Temperature Accuracy ≤±0.1℃
Display Resolution 0.1℃
Ramping Rate Adjustable 0.1℃~4℃
Mode of Temperature Control Sim-tube & Block mode
Gradient Accuracy / ≤±0.1℃
Column Uniformity / ≤±0.2℃
Gradient Range / 30℃~105℃
Temp. Differential Range / 0.1℃~42℃
Gradient Capability / 12 Column
Heated Lid
Height of Heated Lid Steplessly Adjustable Lid, accommodates PCR tubes, stripe and plates
Lid Feature Innovative “TOP-OPEN” technology, protection from over-pressure
Heated Lid Temperature Range 30℃~112℃
Auto Shut-Off Yes
Max. Number of programs Max. 10,000 programs onboard, unlimited storage of protocols with USB flash drive
Max. Step 30 Steps, multiple nesting cycle available
Max. Cycle 10000
Time & Temp. Increment/Decrement 0.1~10℃ available for Touchdown PCR
Auto Pause / Auto Restart Yes
Multi-user log in With password-based authentication to protect personal protocols
Tm calculator Automatically calculates the melting and annealing temperature with two primer sequences
Low Temp.sample storage Yes
Program wizard Pre-program templete make the editing very easy through modify several parameters
Running Report Yes, provide precise data support for analyzing of experimental results
PC Connection PC remote control to manage multiple units across the LAN network
Other Features
Power Global switch power supply: 100V-240V,50-60Hz
Consumption 600W
Dimension(L×W×H) 362×256×255mm
Net Weight 7.3kgs
