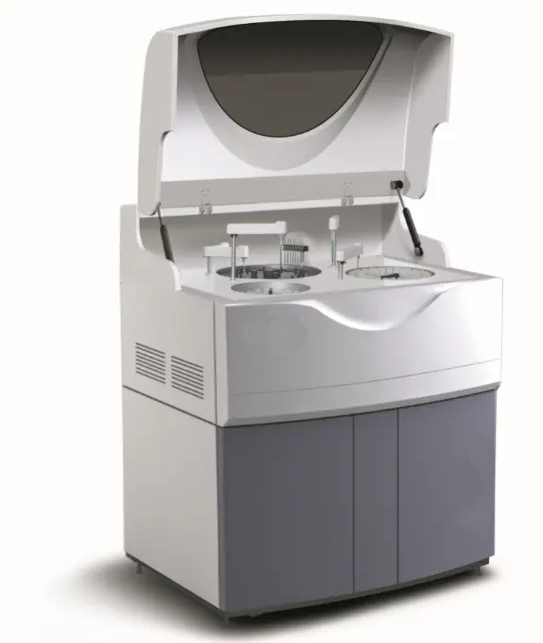

Optimize your biochemical analysis with the AUTO BIOCHEMISTRY ANALYZER AR-6090. Engineered for accuracy and efficiency, this analyzer delivers precise results for a wide range of biochemical assays. With its fully automatic operation and advanced features, it ensures reliable performance in laboratory settings. Elevate your analytical capabilities with the AR-6090 – your trusted solution for high-quality biochemical analysis.




Discrete Automatic, random access with two independent discs and independent stirring needle

Online test items: at most 40 testing items

400 photometric tests per hour, at most 40 items on board

93 sample positions, 80 reagent postions with refrigrated function

2 independent stirrer, advanced 8 steps cleaning system

Automatic dilute and retest, automatic probe cleaning. High sensitive liquid level detection

Back spectrophotometry with Mult- wavelength to assure the testing result more accurate

Perfect reagent & waste alarm system

Open reagent system

Easy to operate: friendly and Intellective Software

Light weight construction to ensure intallation and maintaining be more flexible

Technical Specifications

System Functions Fully automatically, discrete, random STAT function

Online test items: at most 40 testing items

Throughput:400 tests/hour

Analysis Method: end-point, kinetic, two-point,

double-reagents, double-wavelength, multi-standard

etc, open to various reagents

Data Processing: memory up to 2 million patients’ data


Sample/Reagents Handling Sample Position: 93 pcs(In dude standard, QC, STAT postions)

Sample volume:2-50μl,0.1μl step

Sample Probe Cleaning: automatic intemal & extemal washing

Sample Dilution: automatic/Manual pre-dilution, with  dilution ratio up to 1:100

Reagent Postton:80 pes(With refigerated funcion,2C-8℃)

Reagent Volume:10-500μl,1μl step

Reagent Probe: automatic liquid level detect, with collision

protection function

Reagent Probe Cleaning: automatic intemnal & exteral washing


Reaction System Reaction Cuvette: 90 pcs made of special material

Optical Length of Cuvette:6mm

Reaction Volume:200~500μl

Reaction Time:8-14 minutes

Reaction Temperature:37℃±0.1℃

Mixing System: two independent mixing probe

Optical System Wavelength:300-700nm, 9 wavelengths, predsion ±2nm

Spectrophotometry: rear spectrophotometry

Test Range:0-4.0 Abs

Resolution: 0.001Abs

Bar-code Reader(Optional) Bar-code reader used for sample/reagent programming
ISE Module(Optional) Optional1:K,Na,Cl,Ca,PH(5 items)

Throughput: 300 tests/hour

Optional 2:K,Na,Cl(3 items)

Throughput:180 tests/hour

QC Various QC management function and random QC insert
Control and Calibration


Calibration: linear/nonlinear multi-points calibration

Re-test: retest the sample automatically when the result

is out of the linearity range or the sample is not sufficient

Automatic sample dilute function

Cleaning system


8-step automatic washing, automatic cuvette dry function

Water Consumption: 8L/hour

Working Condition Power Supply: ~100-240V,50/60Hz,1KVA


Humidity:≤90%, no dew

Operation System Windows XP or Windows 2000
Input and Output Input: RS-232 interface / keyboard / computer

Output: multi-format printout
