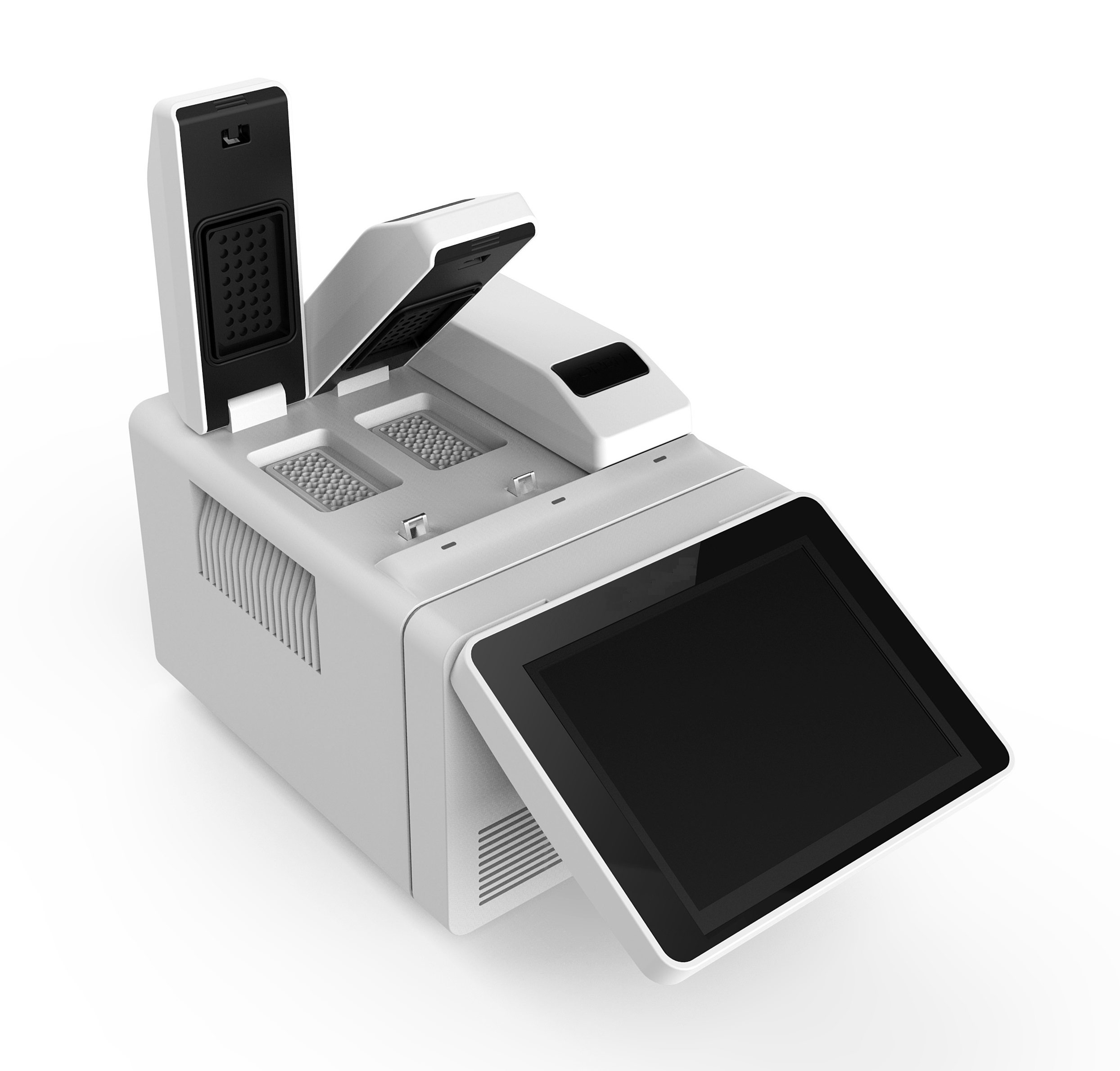

T30 Touch Screen Multi-block Thermal Cycler

Experience precise PCR amplification with the Touch Screen Multi-block Thermal Cycler T30. Engineered for accuracy and efficiency, this cycler delivers reliable results for a variety of molecular biology applications. With advanced features and intuitive touch screen interface, it ensures seamless performance in research settings. Simplify your PCR workflow with the Touch Screen Multi-block Thermal Cycler T30 – your trusted solution for high-quality results.


Touch Screen Multi-block Thermal Cycler T30


 Model T30
Sample Block 3*32wells*0.2ml
Easily Interchange the TalentGene series  without tools
Tube Optional 0.2ml PCR tubes, 8 stripes
Peltier Technology New generation peltier technology, allow 1,000,000 cycles
Display 10” Full Color Touch Screen with adjustable angle, graphically
protocols run edit  and running status
Language English
Communications 2 USB and  LAN
Block Temperature Range 0℃~105℃
Max. Heating Rate 7.5℃/s
Max. Cooling Rate 6℃/s
Temperature Uniformity ≤±0.2℃ (at 90℃)
Temperature Accuracy ≤±0.2℃ (at 90℃)
Display Resolution 0.1℃
Ramping Rate Adjustable Yes
Mode of Temperature Control Sim-tube & Block
Gradient Accuracy ≤±0.1℃ (at 90℃)
Column Uniformity ≤±0.2℃ (at 90℃)
Gradient Range 30℃~105℃
Temp. Differential Range 1~25℃
Gradient Capability Each individual block has 8 gradient temperatures
Heat Lid
Lid Temperature Range 30℃~112℃
Open Method Innovative TOP-OPEN technology,  with excess even pressure of heat lid
Auto Shut-Off Yes,lid will shut off automatically when the block temperature below set temperature
Max. number of programs Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive
Max. Step 30 Steps, multiple nesting cycle available
Max. Cycle 100 Typical Cycles  (multiple nesting allows 10,000 cycles)
Time Increment/Decrement 1-120 sec, available for Long PCR
Temperature Increment/Decrement 0.1-10.0℃, available for Touchdown PCR
Auto Pause / Auto Restart Yes
Multi-user log in Password-based authentication protect personal PCR protocols
Hold at 4℃ Yes,a below ambient temerature incubation allow PCR results storage overnight
Program wizard Yes, template PCR protocol allow to create a new one with only a few clicks
Running Report Yes, provide full review after protocol running
PC Connection Yes
Other Features
Power Global switching power supply:  100V ~ 240V, 50–60Hz Max. 900W
Dimension(L×W×H) 375×270×277mm
Net Weight 13kgs
