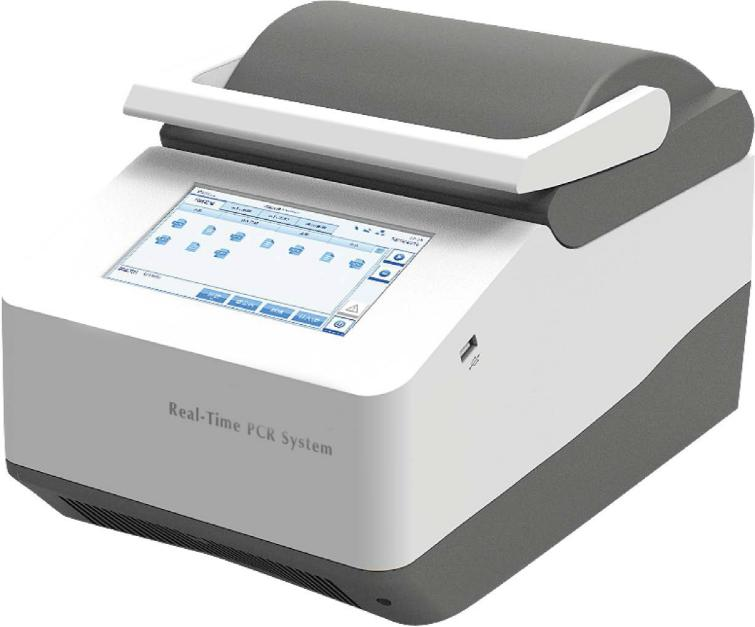

Real-Time PCR Analyzer AR-48E/48R


Optimize your real-time PCR analysis with the Real-Time PCR Analyzer AR-48E/48R. Engineered for precision and efficiency, this analyzer delivers accurate and reliable results for various molecular biology applications. With advanced features and intuitive operation, the Real-Time PCR Analyzer AR-48E/48R ensures seamless performance in research and diagnostic settings. Streamline your real-time PCR experiments with the Real-Time PCR Analyzer AR-48E/48R – your trusted solution for high-quality molecular analysis.

Compare

Real-Time PCR Analyzer AR-48E/48R

Features

The unit is designed to meet the needs of small and medium sized laboratories, mobile laboratories, and on-site testing. With its excellent performance and portability, it can make your experiments more easy-to-use, accurate and efficient.

Technical Specifications

Model 48E 48R
Throughput 48-well
Fluorescence Channels 4 2
Compatible Fluorophores Channel 1: FAM, SYBR Green I, etc.

Channel 2: VIC, HEX, TET, JOE, etc.

Channel 3: ROX, Texos Red, etc.

Channel 4: Cy5, etc.

Channel 1: FAM, SYBR Green I, etc.

Channel 2: VIC, HEX, TET, JOE, etc.

Light Source High-brightness, long-life and maintenance-free LED light source
Detector Photodiodes (PDs)
Fluorescence Scanning Time 48-well 4-color detection

completed within 2s

48-well 2-color detection

completed within 2s

Heating Rate Maximum heating ramp rate ≥8.0°C/s;

Average heating ramp rate ≥6.2°C/s

Cooling Rate Maximum cooling ramp rate ≥6.2°C/s;

Average cooling ramp rate ≥4.5°C/s

Temperature Accuracy ≤0.1°C
Special Temperature

Setting Function

Support thermal gradients PCR, Long PCR, Touch Down PCR
Suitable Consumables 0.2ml clear non-skirt 48-well plates, 8-tube strips,single tubes,etc.
Sample Testing Linearity

And Repeatability

Linear Correlation: /r/ ≥0.999

Repeatability: cycle threshold (Ct) value CV ≤0.5%

Software Analysis Qualitative analysis, absolute quantitative analysis,relative quantitative analysis, end point fluorescence analysis,melting curve analysis,and genotyping analysis, etc.
Control Method Stand-alone operation: 7-inch touchscreen control;

Cloud-enabled: PC software control via direct connection or LAN (local area network);

Up to 10 devices controlled by one PC

Power Failure Protection Automatic recovery of the experiment and other functions when the power is on again after cutting off, without waiting for the power-on of the computer or sofaware control
Date Storage and Transmission A single machine can store more than 1000 experimental data files, which can be imported and exported via USB disks
Stand-Alone Analysis Results No need for an extra computer:experimental data analysis enabled within the instrument; Direct printing function (optional) to output the sample α mplification curve and CT value, simply by connecting to the compatible thermal printer
Reporting Function Built-in experiment report templates for a variety of industries; Fully open universal reporting of which the contents and formats can be customized
Operating System for PC Windows XP Pro or higher
Power Supply and Power Consumption AC 100-240V,50-60HZ;600VA
Weight 11Kg
Instrument Dimension 260x400x260mm (WxLxH)
