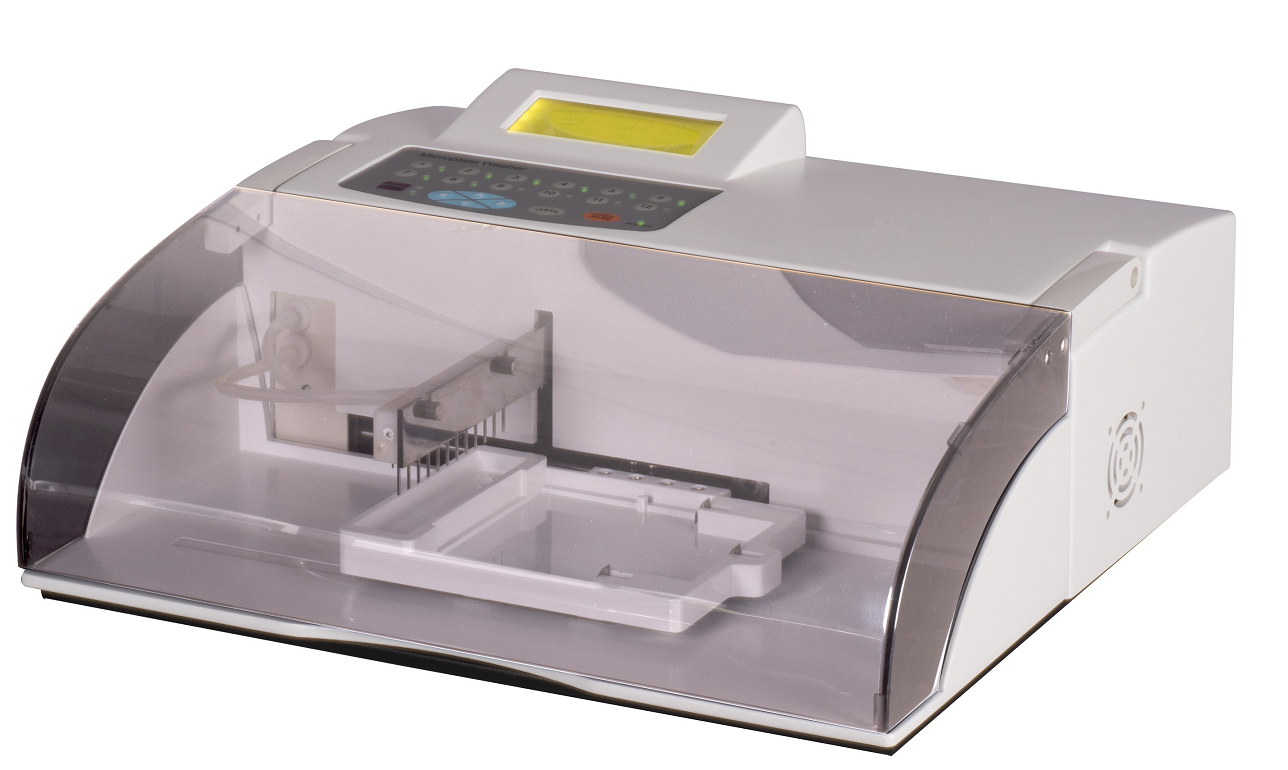

Microplate Washer AR-2000A

Maximize efficiency in your laboratory with the Microplate Washer AR-2000A. Engineered for precision and reliability, this washer delivers thorough washing of microplates for various assays. With its advanced features and user-friendly interface, it ensures dependable performance in laboratory settings. Streamline your workflow with the Microplate Washer AR-2000A – your trusted solution for high-quality microplate washing.”


Microplate Washer AR-2000A


  1. Interchangeable manifolds for 8- and 12-well strips
  2. One or more strips of ELISA Plate washing keyboard choice directly
  3. Minimal residual volume (<1µL/well)
  4. Dispense precision CV<2%
  5. Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization
  6. Cleaning head 5-locations location adjusted,
  7. Shaking or soak time programmed.
  8. Automatic waste and lotion and distilled water liquid warning

Technical Specifications

Micro-plate Types 48 / 96-well U-/V- / Flat-bottom plates or strips
Residual ≤ 1μl / well
Dispense volume 50μl-950μl, adjustable
Washing Cycles 1-99, optional
Washing Mode 1-12, rows and ranks select-able
Soaking Time 0-999s, adjustable
Shaking Time 0-999s, adjustable
Display Large LCD
Channel 1 channels for washing liquid, 1 channel for waste liquid
Memory Up to 100 programs can be stored
Interface RS232
Power Supply 220\110VAC ± 10%, 50\60Hz
Temperature 5°C – 30°C wet ≤ 90%
Dimension/N.W 430mm (L) × 380mm (W) × 120mm (H)/11KGS

Streamlined Washing Efficiency:

  • Automated Washing Cycles: Eliminate manual washing steps, saving valuable time and minimizing variability.
  • Multiple Wash Protocols: Choose from pre-programmed protocols or customize settings for specific assay requirements, ensuring optimal washing efficiency.
  • Adjustable Washing Parameters: Fine-tune parameters like dispense volume, aspiration pressure, and shaking intensity for optimized well cleaning and minimal sample loss.

Unwavering Precision and Consistency:

  • Eight-Channel Wash Head: Ensures uniform washing across the entire microplate, minimizing well-to-well variability and contributing to reliable results.
  • Integrated Aspiration System: Provides efficient and complete removal of wash solutions, minimizing background noise and improving assay sensitivity.
  • Liquid Level Sensors: Prevent overflow and underfill incidents, safeguarding your valuable samples and reagents.

Tailored for Diverse ELISA Applications:

  • Wide Range of Compatible Plates: Accommodates various microplate formats, including standard 96-well and 384-well plates, catering to diverse assay needs.
  • User-Friendly Interface: Features an intuitive interface for easy programming and operation, simplifying workflow integration and user training.
  • Compact Design: Saves valuable bench space while offering efficient washing capabilities, ideal for laboratories with limited space.

Investing in the AR-2000A Microplate Washer means:

  • Enhanced Workflow Efficiency: Automate your ELISA washing steps, freeing up valuable time for other critical tasks and minimizing variability.
  • Precise and Consistent Results: Achieve reliable data with uniform washing, efficient aspiration, and overflow prevention features.
  • Versatility for Diverse Assays: Conduct various ELISA applications with compatible plate formats and customizable washing protocols.
  • Space-Saving Design: Optimize your laboratory layout with a compact and efficient instrument.
