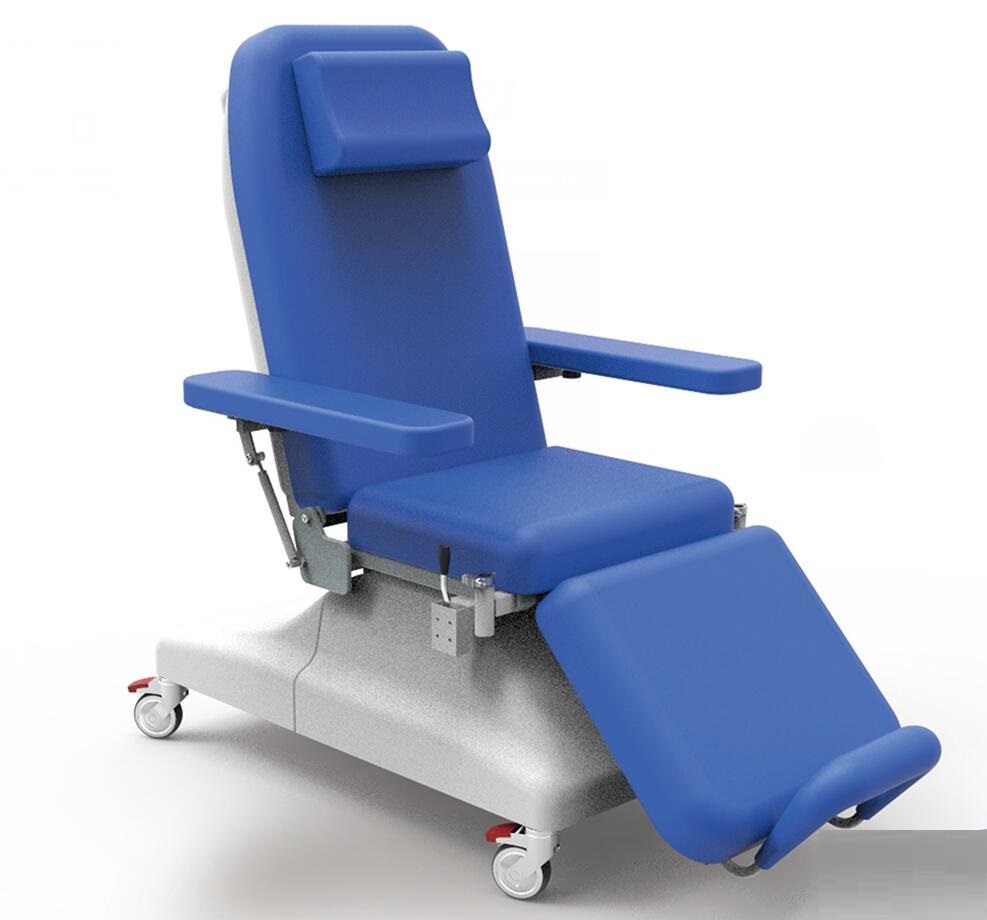

Electronic Dialysis Chair DC01


Experience comfort and efficiency with our Electronic Dialysis Chair DC01. Engineered for optimal patient support and caregiver convenience, this chair offers customizable electronic controls for precise positioning during dialysis treatments. With its ergonomic design and advanced features, it ensures patient comfort and accessibility, enhancing the dialysis experience. Elevate your dialysis clinic with the Electronic Dialysis Chair DC01, your trusted solution for superior patient care and treatment comfort.

Compare

Electronic Dialysis Chair DC01

Features

  1. Whole chair with steel frame provide strong bearing capability, safe working load up to 240kg.
  2. High density (45D) polyurethane foam for mattress with moderate elasticity and durability provides additional comfort for patients having to sit for long periods.
  3. Soft upholstery makes of breathable PVC material, which is waterproof, fire retardant, anti-corrosion, easily clean & disinfection. The PVC leather is resistant to disinfectants, blood and urine too.
  4. Four upholstery colors to choose from.Warm & light colors of upholstery contribute to patient’s mental well-being.
  5. The hand control and two Denmark Linak motors allow for quick positioning for any situations, including trendelenburg (or shock position) with the push of one button.
  6. Mute medical castors of (p 100mm with separate brake.
  7. The detachable headrest pillow can be adjusted according to the height of each patient.
  8. Overall chair dimension: L2100mm x W600mm x H600mm. Smaller overall chair dimension to save up to 40% of floor space.

Technical Specifications

PARAMETER SPECIFICATION
Total Length 2100 mm±20mm
Backrest Adjustment (-12°~75°) ±5°
Seat width 600mm (total width 930mm including armrest) ±20mm
Legrest Adjustment (-30°~12°) ±5°
Seat height 600mm ±20mm
Backrest length 860 mm ±20mm
Legrest length 650mm ±20mm
Armrest Dimension L640*W150*D60mm ±20mm
Height of armrest and seat 220mm ±20mm
Leather PVC leather
Cushion Sponge
Frame Q235 steel
Power Supply AC110V-240V 50/60Hz
Motor 2
Chassis Dimension 1100mm×700mm ±20mm
Castor 4x (φ100mm swivel castors with separate brakes
Pillow size 400 mm×230 mm×80 mm ±20mm
Weight 82KGS ±3KGS
Safe Maximum Load 240KGS
Food table maximum load 10 KGS
Storage environment Temperature: -20℃~60℃, relative humidity: 10%~85%
Operation environment Temperature: 0℃~35℃, relative humidity: 10%~85%
