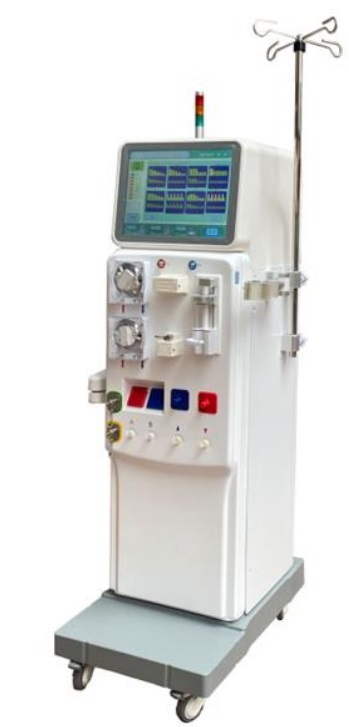

Hemodiafiltration Machine ADM-6008
Features
- On-line HDF
- Self-checking function;
- Carbonate dialysis;
- Double needle dialysis;
- Liquid level detector;
- Bubble detector;
- Blood leakage detector;
- Temperature and electric conductivity monitoring;
- Arterial pressure, venous pressure and transmembrane pressure monitoring;
- Rolling blood pump;
- Heparin pump;
- Dehydration amount controlled by capacity;
- Automatic disinfection cleaning program;
- Stand-by power of blood pump in case of power failure;
- Information display function of display screen.
Technical Specifications
PARAMETER | SPECIFICATION |
Working Condition | |
Water input pressure | 0.1Mpa~0.6Mpa, 15P.S.I~60P.S.I |
Water input temperature | 5℃~30℃ |
Working environment temperature | 10℃~30℃ at relative humidity ≦70% |
UF Rate | |
Flow range | 0ml/h~4000ml/h |
Resolution ratio | 1ml |
Precision | ±30ml/h |
Blood Pump & Substitution Pump | |
Blood pump flow range | 10ml/min~600ml/min (diameter: 8mm or 6mm) |
Substitution pump flow range | 10ml/min~300ml/min (diameter 8mm or 6mm) |
Resolution ratio | 0.1ml |
Precision | ±10ml or 10% of reading |
Heparin Pump | |
Syringe size | 20, 30, 50ml |
Flow range | 0ml/h~10ml/h |
Resolution ratio | 0.1ml |
Precision | ±5% |
Monitoring System & Alarm Setup | |
Venous pressure | -180mmHg ~ +600mmHg, ±10mmHg |
Arterial pressure | -380mmHg ~ +400mmHg, ±10mmHg |
TMP | -180mmHg ~ +600mmHg, ±20mmHg |
Dialysate temperature | preset range 34.0℃~39.0℃ |
Dialysate flow | Less than 800 ml/min (Adjustable) |
Substitution flow range | 0-28 L/H (on line HDF) |
Blood leak detection | Photo chromic alarm when erythrocyte specific volume is 0.32±0.02 or blood leak volume is equal or more than 1ml per liter of dialysate |
Bubble detection | Ultrasonic, Alarm when a single air bubble volume is more than 200μl at 200ml/min blood flow |
Conductivity | Acoustic-optic |
Disinfection/Sanitize | |
Hot disinfection | Time: 30 minutes |
Temperature: about 80℃, at flow rate 500ml/min | |
Chemical disinfection | Time: 30 minutes |
Temperature: about 36℃~50℃, at flow rate 500ml/min | |
Chemical disinfection with heat | Time: 45minutes |
Temperature: about 36℃~80℃, at flow rate 50ml/min | |
Rinse | Time: 10minutes |
Temperature: about 37℃, at flow rate 800ml/min | |
Storage Environment | Storage temperature should be between 5℃~40℃, at relative humidity ≦80% |
Power Supply | |
AC220V, 50Hz/60Hz, 10A | |
Input power | 1500W |
Back-up battery | 30 minutes |
Size &Weight | |
Size | 380mmx400x1380mm (L*W*H) |
Net Weight approx. | 88KG |
Gross Weight approx. | around 100KG |
Package Size approx | 650×690×1581mm (L x W x H) |
Function | HDF, on-line BPM, Bi-cart and 2 pcs endotoxin filters |
Optional Function | Online KT/V, LAN |
