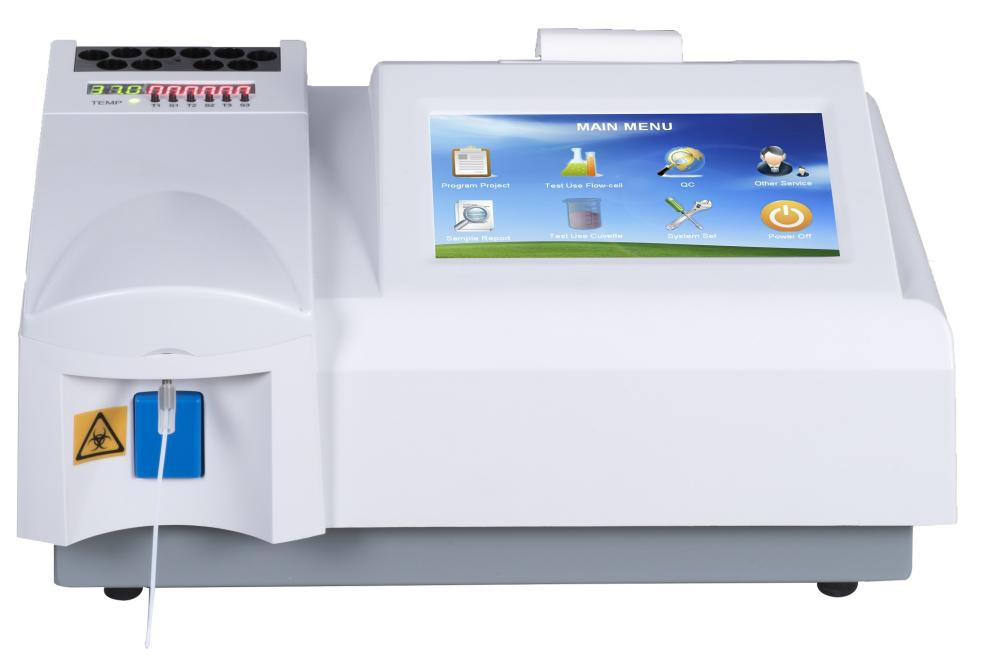

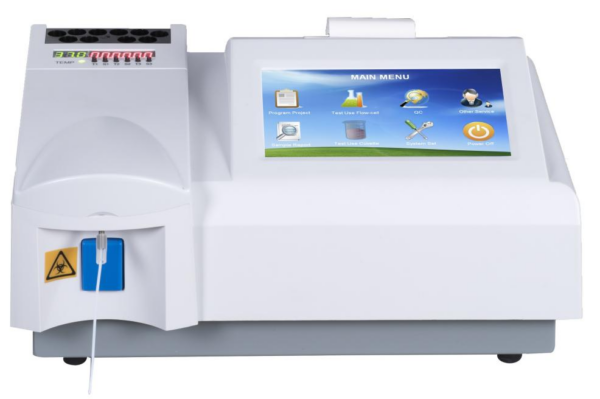

3002B1 Chemistry Analyzer

Maximize efficiency in your laboratory with the Chemistry Analyzer 3002B1. Engineered for accuracy and reliability, this analyzer delivers precise results for a wide range of chemistry assays. Featuring advanced technology and a user-friendly interface, it ensures dependable performance in laboratory settings. Elevate your analytical capabilities with the 3002B1 – your trusted solution for high-quality chemistry analysis.


3002B1 Chemistry Analyzer


  1. 10 incubators and three timers
  2. 7inch Color LCD , Touch screen
  3. Flow cell and Cuvette test mode compatible
  4. Real time curve showing
  5. 7 wavelength ,90 test item pre-programmed
  6. Memory for 10,000 sample results
  7. Light source hibernate function making lamp life longer
  8. RS232 interface, PC connecting

Technical Specifications

Test mode Kinetic, End point, Two point, Absorbance
Wavelength 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision ±2 nm, width ≤ 10nm
Absorbance range 0~4.500 Abs
Absorbance precision outside 0.0001 Abs , inside 0.00001 Abs
carry over < 1%
Repeatability CV < 1%
Incubator 37°C、30°C、25°C、Precision : ±0.1°C
Sample volume 0~3000 uL (≥500uL recommend)
Data Storage ≥10000
Quality control curve X-bar,SD、CV%、L-J quality control curve for every test item
Flow cell 32 uL quartz glass, 10 mm
Lamp Philips 6V 10W Halogen Lamp with long life
Screen 7 inch color LCD
CPU ARM series high speed micro CPU
Printer Internal thermal sensitive printer
Interface RS-232
Work Environment Temperature 0°C ~ 40°C, Humidity: ≤80%
Power supply 100~240VAC,50-60Hz,100VA
Dimension 340(L)*270(W)*160(H)
Weight 5 kg

Usual test list

Liver function ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3
Renal function BUN  CRE  UA  URE  CO2-CP  γ-GT
Lipids T-CHO  TG  HDL-C  LDL-C
Cardiac function CK  CK-MB  LDH
Immune proteins IGA  IGG  IGM  C3
Others GLU  HGB  AMS
