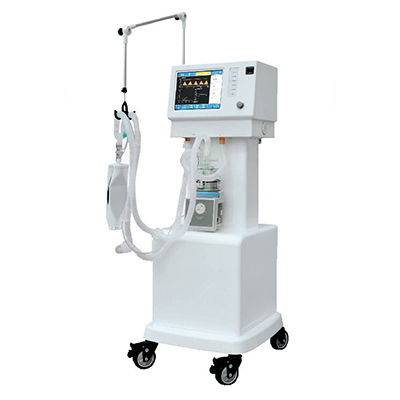

VENTILATOR AM-201


Optimize patient care with our VENTILATOR AM-201. Engineered for reliability and precision, this advanced ventilator offers intuitive controls and customizable settings for optimal respiratory support. With its ergonomic design and versatile features, it ensures seamless operation in medical facilities. Trust in the AM-201 for safe and efficient ventilation management. Elevate your critical care procedures with our state-of-the-art VENTILATOR AM-201.

Compare

VENTILATOR AM-201

Technical Specifications:

PARAMETER SPECIFICATION
Display Mode High-definition 5.7” LCD screen display
Ventilation Mode IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH
Ventilation Parameters Tidal Volume 50~1500ml
Rate 2~99bpm
SIMV Rate 2~20bpm
I:E 2:1~1:8
Inspiratory Trigger Pressure -1.0~2.0kPa
PEEP 0~2.0kPa
Pressure Range 1.0~6.0kPa
SIGH 1.5 times the inspiratory time
Parameters for Ventilation Monitoring Tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure – time waveform, flow rate – time waveform, PEEP, inspiratory trigger pressure.
Power AC 220V±10% 50Hz±1Hz; UPS, Storage battery
Mechanical Arms
SECURITY ALARM SYSTEM
Power Alarm
Airway Pressure Alarm Upper Limit Setting Range 1.0~6.0kPa
Low Limit Setting Range 0.4~2.0kPa
Per-minute Ventilation Volume Alarm Upper Limit Setting Range 3.0~30L/min
Low Limit Setting Range 1.0~10L/min
Sustained High-pressure Alarm It will give alarm when stress have consistently been higher than 2.5kPa.
Suffocation Alarm It will give sound and light alarm if there is no tidal volume input for 15 seconds.
