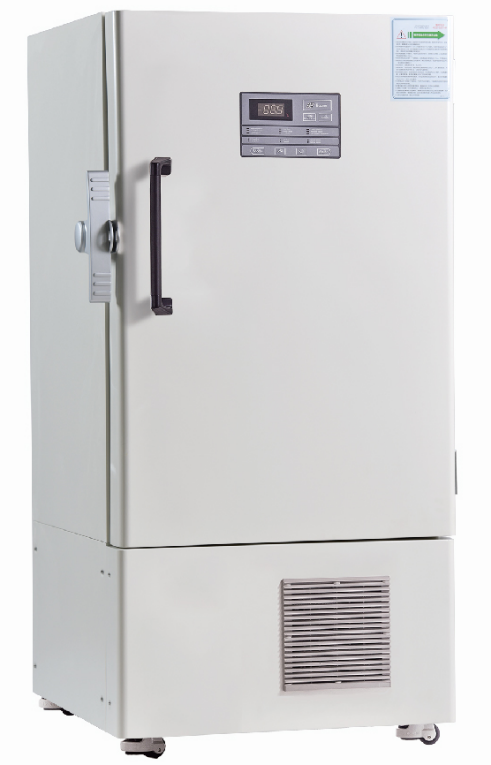

AM-ADF-86V188E Ultra-low Medical Freezer (-40 ~ -86°C)

Ensure uncompromised preservation of medical samples with the Ultra-low Medical Freezer (-40°C to -86°C) AM-ADF-86V188E. Tailored for pharmaceutical and healthcare facilities, this freezer offers precise temperature control to safeguard delicate samples and vaccines. With its advanced features and wide temperature range, it provides reliable storage conditions for critical medical supplies. Elevate your storage standards with the AM-ADF-86V188E Ultra-low Medical Freezer – your trusted solution for maintaining optimal storage conditions and preserving medical inventory with utmost precision.


Ultra-low Medical Freezer (-40 ~ -86°C) AM-ADF-86V188E


Wide temperature range :10℃~32℃ambient temperature can reach -86℃.

Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.

Independent research and development of mixed refrigerant can make device save energy 50%.

Better uniformity, uniformity is increased 30%.

The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.

304 stainless steel inner chamber for friendly using and easy cleaning.


Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm

Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

Keyboard lock, password protection to avoid set parameter randomly.

Special noise reduction design.

Humanized design

4 casters with stopper for easy moving and fixation.

Standard 25mm test hole for easy connecting to temperature monitoring systems.

2 adjustable shelves for easy storing.

Removable condenser dust gauze convenient for cleaning and maintenance.

Removable inner door for user to defrost and clean.

Standard USB port,USB port to read temperature and alarm conditions in recent

Optional parts

Touch screen, Test hole, Data logger, Chart recorder, CO2/LN2 back-up system, cold storage rack & box.


Patented technology, mixed refrigerant.

Save energy up to 50%.

Cold storage box loading QTY:10800

Build-in back-up battery: 72 hours power failure alarm,and have low battery alarm

Can be optional temperature recorder (data logger)


Temperature Range: -40~-86°C

Ambient Temperature: +10~+32°C

Controller: Microprocessor

Display: Digital Display

Refrigeration System

Compressor/Brand: 1/SECOP

Refrigerant: Mixed

Cooling Type: Direct cooling

Defrost Type: Manual

Electrical Data

Power Supply(V/Hz): 220~240V/50~60;115/60

Rated Power(W): 660

Electrical Current(A): 4.3

Power Consumption: 8.2 kWh/24h

Power failure backup system: 72H


Capacity: 188L

Interior Size(W*D*H): 465*465*830mm

Exterior Size(W*D*H): 850*930*1595mm

Package Size(W*D*H): 880*910*1820mm


Loading Qty(20’/40’/40’H): 12/26/26


Caster: 4

Remote alarm port: Y

Inner Door:3(stainless steel)

Shelf: 2(stainless steel)

Test hole: 1/25MM

Data looger: Optional

CO2 back up system: Optional

LN2 back up system: Optional

Cold storage box loading Qty: 108

MRNA vaccine can be stored: 10800pcs
