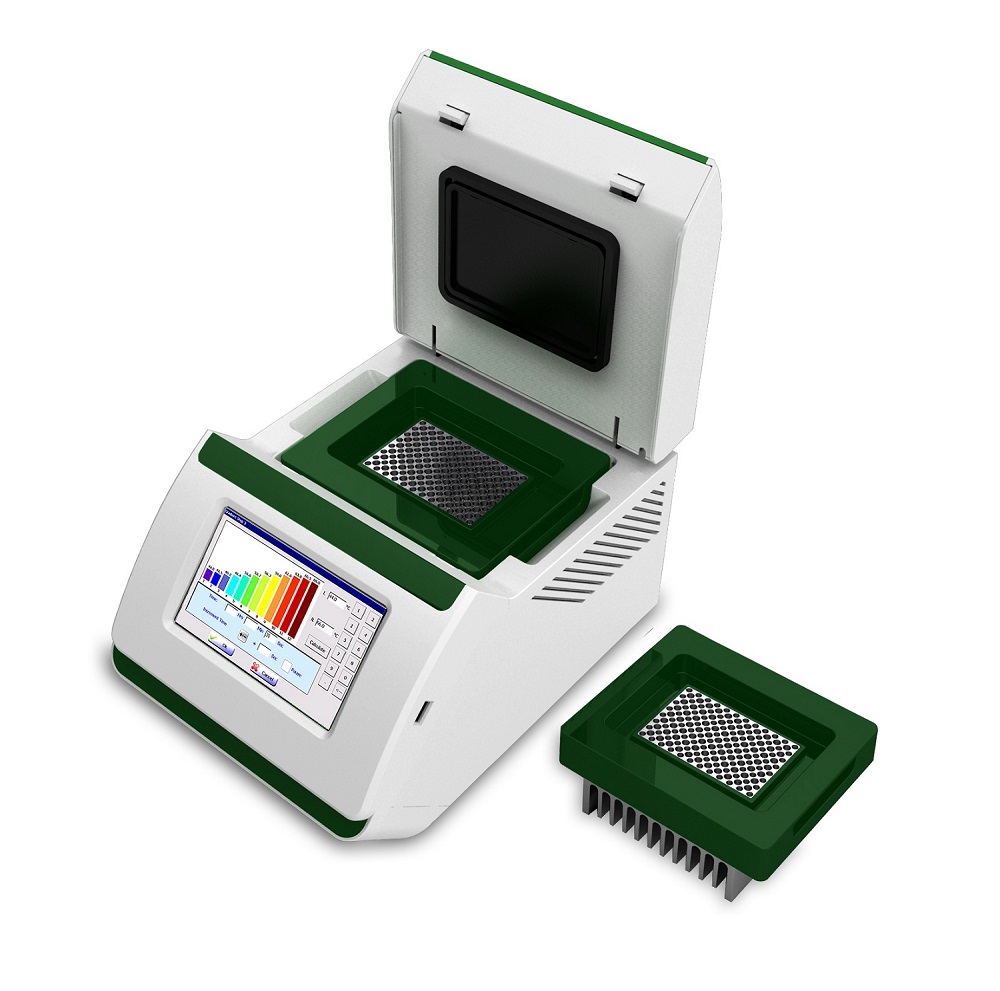

A300 Touch Screen PCR Analyzer (Fast)
Accelerate your PCR analysis with the Touch Screen PCR Analyzer (Fast) A300. Engineered for speed and efficiency, this analyzer offers rapid processing of PCR samples with its intuitive touch screen interface and advanced features. Designed for versatility, the Touch Screen PCR Analyzer A300 ensures precise and reliable results, making it an ideal solution for research and diagnostic applications. Streamline your PCR workflow and elevate your molecular analysis with the A300.
Touch Screen PCR Analyzer (Fast) A300
Specification
| Optional Module | Standard Module | Gradient Module |
| Optional Module | 96 Module：96wells×0.2ml
9677 Module：96wells×0.2ml+77wells×0.5ml 48 Module：48wells×0.2ml+48wells×0.5ml 108 Module：108wells×0.2ml+88wells×0.5ml Multi-purpose: 9677 Module + In-situ Adapter |
96 Module：96wells×0.2ml
9677 Module：96wells×0.2ml+77wells×0.5ml 48 Module：48wells×0.2ml+48wells×0.5ml 108 Module：108wells×0.2ml+88wells×0.5ml Multi-purpose: 9677 Module + In-situ Adapter |
| Display | 7” Color Touch Screen, graphical display of protocols and running status | |
| Communications | USB2.0, LAN and RS232 | |
| Temperature | ||
| Block Temperature Range | 0℃～100℃ | |
| Max. Heating/Cooling Rate | 6℃/s | |
| Temperature Uniformity | ≤±0.2℃（at 95℃） | |
| Temperature Accuracy | ≤±0.2℃（35℃-100℃） | |
| Display Resolution | 0.1℃ | |
| Mode of Temperature Control | Sim-tube & Block mode | |
| Gradient | ||
| Gradient Accuracy | / | ≤±0.3℃（35℃-100℃） |
| Column Uniformity | / | ≤±0.3℃（at 95℃） |
| Gradient Range | / | 30℃～99.9℃ |
| Temp. Differential Range | / | Max. 30℃ |
| Gradient Capability | / | 12 Column（Vertical） |
| Heated Lid | ||
| Height of Heated Lid | Steplessly Adjustable Lid, accommodates a wide range of PCR tubes and plates | |
| Open Method | Innovative “TOP-OPEN” technology realizes Two-in-One(Open/Lift) Lid | |
| Heated Lid Temperature Range | 30℃～112℃ | |
| Auto Shut-Off | Yes | |
| Software | ||
| Max. Number of programs | Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive | |
| Max. Step | 30 Steps, multiple nesting cycle available | |
| Max. Cycle | 100 typical cycles (duplex nesting 60,000 cycles) | |
| Time & Temp. Increment/Decrement | Yes , available for Long PCR & Touchdown PCR | |
| Auto Pause / Auto Restart | Yes | |
| Multi-user log in | With password-based authentication, prevent from view, copy and alteration of protocols | |
| Tm calculator | Automatically calculates the melting and annealing temperature with two primer sequences | |
| Hold at 4℃ | Yes, an Infinite incubation time at low temperature for overnight working | |
| Program wizard | Yes, create PCR protocols with only a few clicks | |
| Running Report | Yes, provide precise data support for analyzing of experimental results | |
| PC Connection | PC remote control to manage more than 120 units of A300 across the network | |
| Other Features | ||
| Power | Universal AC input Switching Power Supply: 85V ~ 265V, 50-60Hz Max. 600W | |
| Dimension（L×W×H） | 362×256×255mm | |
| Net Weight | 7.3kgs | |
