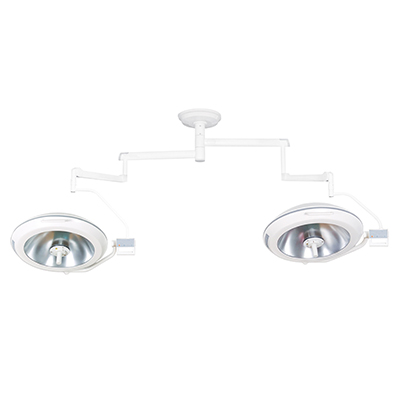

Illuminate surgeries with precision using the OPERATING LAMP AM-L600/600-II. This advanced lamp is designed to provide superior lighting in operating rooms, ensuring optimal visibility for intricate procedures. With its innovative design, the OPERATING LAMP AM-L600/600-II delivers focused illumination, empowering surgeons with exceptional clarity and accuracy.

Featuring a sleek and ergonomic design, the OPERATING LAMP AM-L600/600-II offers flexibility and ease of use. Trust in its reliability and performance to support seamless surgical workflows and enhance patient outcomes.

Elevate your surgical environment with the OPERATING LAMP AM-L600/600-II and experience the pinnacle of surgical lighting technology.




AM-L600/600 shadowless operating lamp is suitable for the requirements of various operating conditions and it is ideal operating lighting equipment for modern operating rooms and clean operating rooms.


– The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic and the rotation is more flexible and convenient.

– The removable handle sheath can be disinfected at the high temperature of135℃.

– The depolished panel made of imported material makes the light rays softer.

– The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.

– The special radiation filter reducing the heat to the minimum level.

– The multi-flake retroreflector made of imported aluminum sheet has the features of no coating film and never fading.

– Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.

– Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination and boasting brightness memory.

– One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.

Technical Specifications

Illumination 80,000-140,000LX x 2 (at 1m distance)
Color Rendering Index 100≥Ra≥85
Facula Diameter φ100~φ280mm
Depth of Light Beam ≥700mm
Brightness Level Adjustment CPU Light-dimmer
The Value of the Total Irradiance (service range for temperature rise≤10℃) ≤6mW/m²lx
Total Irradiance (temperature rise on the head of patient under surgical operation≤2℃) ≤600W/m²
Shift of Major and Stand by Lamps Automatic
Color Temperature 4500K±500K
Diameter of Lamp Holder 600mm×2
Mains Voltage AC220V±20%, 50Hz
Bulb Voltage AC24V Bulb Power
Input Power 200VA×2
Height for Installation 280-320cm
Battery is Optional
