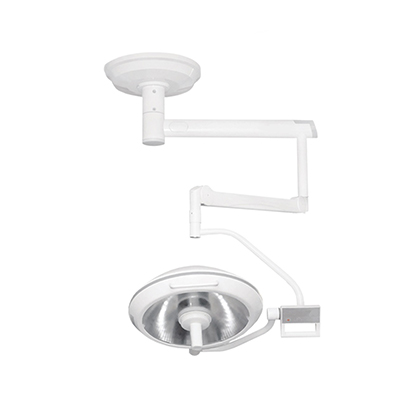

OPERATING LAMP AM-L500-III


Illuminate surgeries with precision using the OPERATING LAMP AM-L500-III. This advanced lamp is designed to provide superior lighting in operating rooms, ensuring optimal visibility for intricate procedures. With its innovative design, the OPERATING LAMP AM-L500-III delivers focused illumination, empowering surgeons with exceptional clarity and accuracy.

Featuring a sleek and ergonomic design, the OPERATING LAMP AM-L500-III offers flexibility and ease of use. Trust in its reliability and performance to support seamless surgical workflows and enhance patient outcomes.

Elevate your surgical environment with the OPERATING LAMP AM-L500-III and experience the pinnacle of surgical lighting technology.

Compare

OPERATING LAMP AM-L500-III

Introduction

AM-L500-III shadowless operating lamp is suitable for the requirements of various operating conditions and it is ideal operating lighting equipment for modern operating rooms and clean operating rooms.

Features

– The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic

and the rotation is more flexible and convenient.

– The removable handle sheath can be disinfected at the high temperature of 135℃.

– The depolished panel made of imported material makes the light rays softer.

– The imported switch power supply is adopted to control the voltage, making the work

voltage permanently stable.

– The special radiation filter reducing the heat to the minimum level.

– The multi-flake retroreflector made of imported aluminum sheet has the features of no

coating film and never fading.

– Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with

the average service more than 1500 hours.

– Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination

and boasting brightness memory.

– One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2

second when the main bulb malfunctions, and it has indicators for the damage of main or

standby bulb.

Technical Specifications

PARAMETER SPECIFICATION
Illumination 60,000-120,000LX (at 1m distance)
Color Rendering Index 100≥Ra≥85
Facula Diameter φ100~φ280mm
Depth of Light Beam ≥700mm
Brightness Level Adjustment CPU Light-dimmer
The Value of the Total Irradiance (service range for temperature rise≤10℃) ≤6mW/m²lx
Total Irradiance (temperature rise on the head of patient under surgical operation≤2℃) ≤600W/m²
Shift of Major and Stand by Lamps Automatic
Color Temperature 4500K±500K
Diameter of Lamp Holder 500mm
Mains Voltage AC220V±20%, 50Hz
Bulb Voltage AC24V Bulb Power
Input Power 200VA
Height for Installation 270-320cm
Battery is Optional
