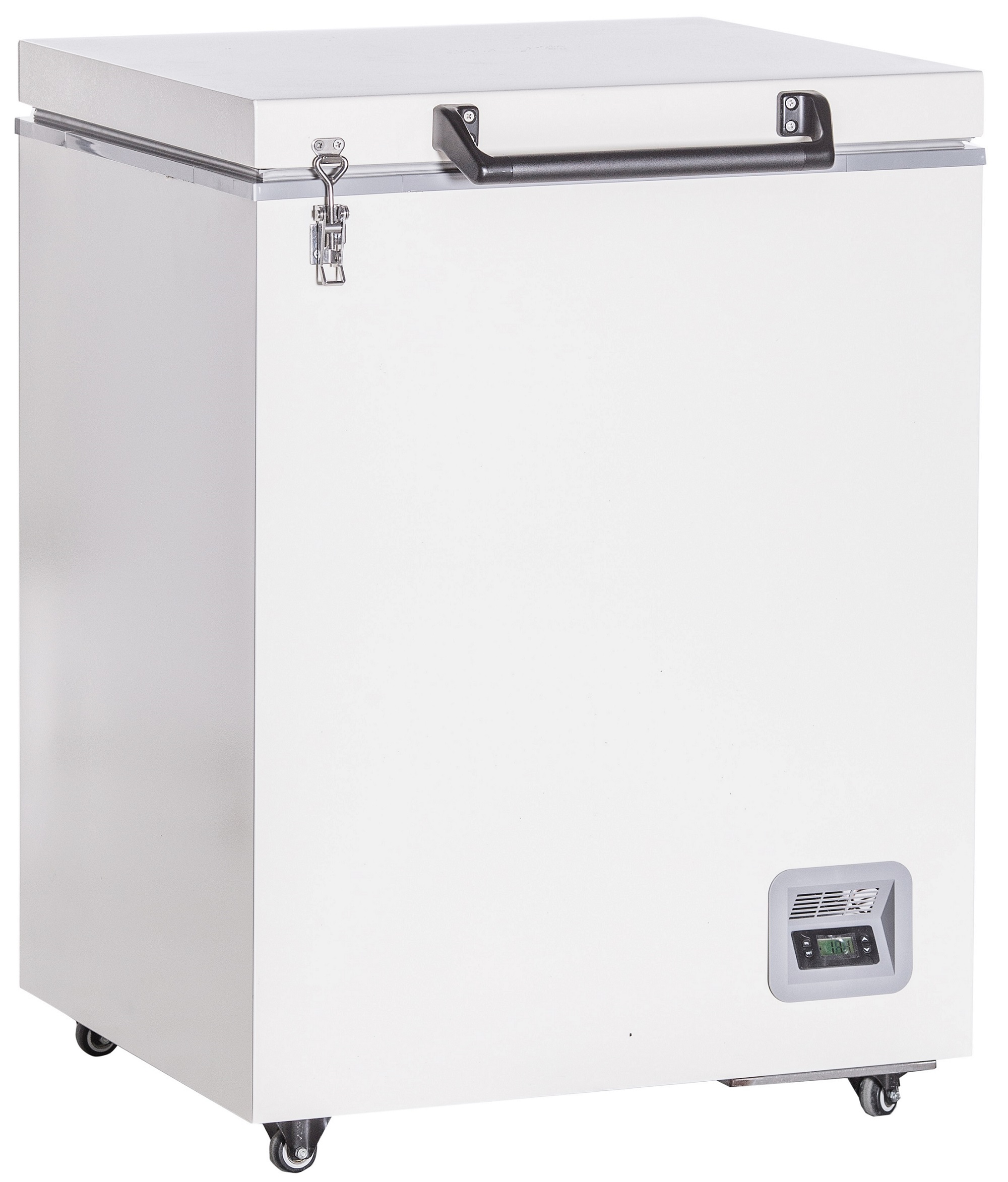

Medical Freezer (-30 ~ -40°C) AM-ADF-40H105

Application

Specially designed to store vaccines, blood plasma, and many other biological materials etc.

Features

Accurate microprocessor controller to ensure consistent cabinet temperature -30 ~-40°C and increment 0.1°C.

Embedded handle, easy for one-man operation.

Adjustable height of plastic-coated fabric grid, more uniform temperature.

Wide available voltage range: 187V~242V

Chemically stable, CFC-free, commercially available and environmentally safe refrigerant

Safety

Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, Thermostat failure.

High ambient temperature, controller setting password to prevent unauthorized access.

Power failure protection: turn on delay of the cooling system when power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed.

Backup battery to ensure that power alarm for 48 hours after power off.

Humanized Design

4 casters with stopper for easy moving and fixation.

Optional test hole, convenient for temperature monitoring.

Adjustable basket design, maintain the temperature in the cabinet

Performance

Capacity(L): 105L

Temperature Range(°C): -30 ~ -40°C

Ambient Temperature(°C): +10~+32°C

Cabinet Type: Horizontal

Control System

Controller: Microprocessor

Display: Digital Display

Refrigeration System

Compressor: 1

Refrigerant: R290

Cooling Type: Direct Cooling

Defrost Type: Manual

Electrical Data

Power Supply(V/Hz): 187~242/50~60; 115/60

Rated Power(W): 120W

Electrical Current(A): 1.05

Power Consumption(kWh/24h): 4.0

Dimensions

Interior Dimension(W*D*H) (mm): 480×380×665

Exterior Dimension(W*D*H) (mm): 680×580×935

Package Dimension(W*D*H) (mm): 740×680×970

Net/Gross Weight(approx.) (kg): 62/75

Alarm

High/Low Temperature, Power Failure, Thermostat failure, Door ajar

Accessories

Caster 4

Temperature Recorder: Optional
