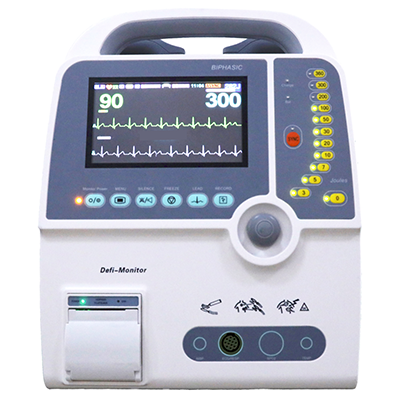

AM-DEF-8000C DEFIBRILLATOR
Technical specifications
Defibrillation
-Defibrillation type Manual, Synchronized, Asynchronized
-Output waveform Biphasic technology
-Energy accuracy <+1%
-Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 Joule (Nominal at a resistance of 50)
-Charging time Maximum 10 seconds to 360 Joule
-Paddles Reusable external adult paddles (Pediatric paddles integrated)
Power requirements
-AC Power supply 110V, 60 Hz /220V, 50 Hz
-Vehicle Voltage DC 12V Li-ion battery
Internal Battery
-Battery type Rechargeable lithium battery
-Charging time Time-Minimum of 4 hours for full charging
-Battery charging During AC Power Supply operation of the device
-Charging /Low Battery Indication Red LED
-Battery Capacity 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules
Display
-LED Dimensions 7’diagonal {155mm*88mm}
-Type High resolution true-color graphic LED
-Resolution 480X234
ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1-V6, GND
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: Withstand 4000vAc/50Hz voltage in isolation and work against electrosurgical interfere and defibrillation
NIBP
Working mode: Manual/Automatic/stat (5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45°C
Resolution 0.1°C
SpO2
Display: spo2 value, pulse histogram, waveform, pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe: standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Pulse
Pulse range: 0-300bpm
Pulse accuracy: ±2bpm
Built-in Recorder
-Paper: 50mm thermal.
-Printing Method: High-resolution, thermal print head.
-Record date, time sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
-Print mode
- HR exceed limits alarm recording
- Auto timed recording
- Real-Time Recording
- Defibrillation discharge trigger recording
Standard Parameter
Biphasic Defibrillation, ECG, NIBP, TEMP, SPO2, Pulse, Recorder
Optional AED
Adult Mode: 150J/150J/200J, 120J/120J/150J
Children Mode: 50J/50J/75J, 30J/30J/50J
