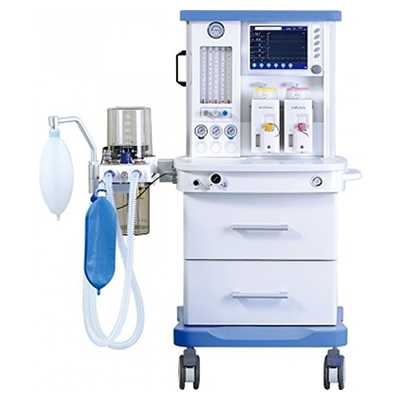

ANESTHESIA MACHINE AM-6100D


Experience excellence in anesthesia delivery with the ANESTHESIA MACHINE AM-6100D. Engineered for precision and reliability, this advanced machine offers intuitive controls and precise gas delivery for optimal patient care. With its ergonomic design and customizable features, it ensures seamless operation in medical facilities. Trust in the AM-6100D for safe and efficient anesthesia administration. Elevate your procedures with our state-of-the-art ANESTHESIA MACHINE AM-6100D.

Compare

ANESTHESIA MACHINE AM-6100D

Description:

AM6100D Anesthesia System

Friendly Powerful Reliable

Application:

The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique.  Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV.

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and touch screen give you better operating experience.

l Over 2,000 units installed in the world.

Features

l 7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l High precision flow meter, instantly know the fresh gas flow to your patient.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Vaporizer with temperature, flow compensation and self-lock function (S6100D can only equipped with one vaporizer), keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

l Vital sign monitor and Anesthetic gas monitor are optional.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l Low O2 pressure alarm and N2O cut-off protection.

Specifications

Ventilation modes: IPPV; A/C; SIMV;
Ventilator parameter ranges
Flow meter O2(0.1-10L/min)
N2O(0.1-10L/min)
AIR(0.1-10L/min)
Rapid oxygen supply 35L/min-75L/min
Tidal volume(Vt) 0, 20 mL ~ 1500 mL
Frequence(Freq) 1bpm ~ 100 bpm
I/E 4:1~1:8
PEEP 0cmH2O ~ 30 cmH2O
Pressure triggering sensitivity(PTr) -20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr) 0.5 L/min ~ 30 L/min
Pressure control (PC) 5 cmH2O ~ 60 cmH2O
SIGH 0(off)  1/100 ~ 5/100
Apnea Ventilation OFF,5 s ~ 60 s
Pressure Limit 20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq) 0 /min ~ 100 /min
Tidal volume(Vt) 0 mL ~ 2000 mL
MV 0 L/min ~ 100 L/min
Oxygen concentration 15 % ~ 100 %
Graphical display: Oxygen concentration
SizeWooden case packing size:L 560*W 820*H 1450mm , GW:104KG ; NW:64KG

Alarm and protection

No tidal volume ≤5Ml within 6s
High oxygen concentration alarmLow oxygen concentration alarm 19%-100%18%-99%
High Airway  pressure alarmLow Airway  pressure alarm

High Minute Volume alarm

Low Minute Volume alarm

Continuous Pressure alarm

20cmH2O-100cmH2O0cmH2O-20cmH2O

Adult(5L/min-20L/min) Paed(1L/min-15L/min

0-10L/min)

(PEEP+1.5kPa) over 16s

Suffocation warning 5s-60s no spontaneous ventilation
The maximum limited pressure <12.5 kPa
Fan errorOxygen deficit Show on screenShow on screen
Working conditions
Gas source O2,N2O
Pressure 280kPa-600kPa
Voltage 100-240V
Power frequency 50/60Hz
Input power 40VA
Vaporizer

20170428062837 21722 20170428062901 67991 20170428062957 44774 20170428063059 95899

Anesthesia gas Adjustable scope % (volume percentage)
Halothane 0 ~ 5
Enflurane 0 ~ 5
Isoflurane 0 ~ 5
Sevoflurane 0 ~ 8
