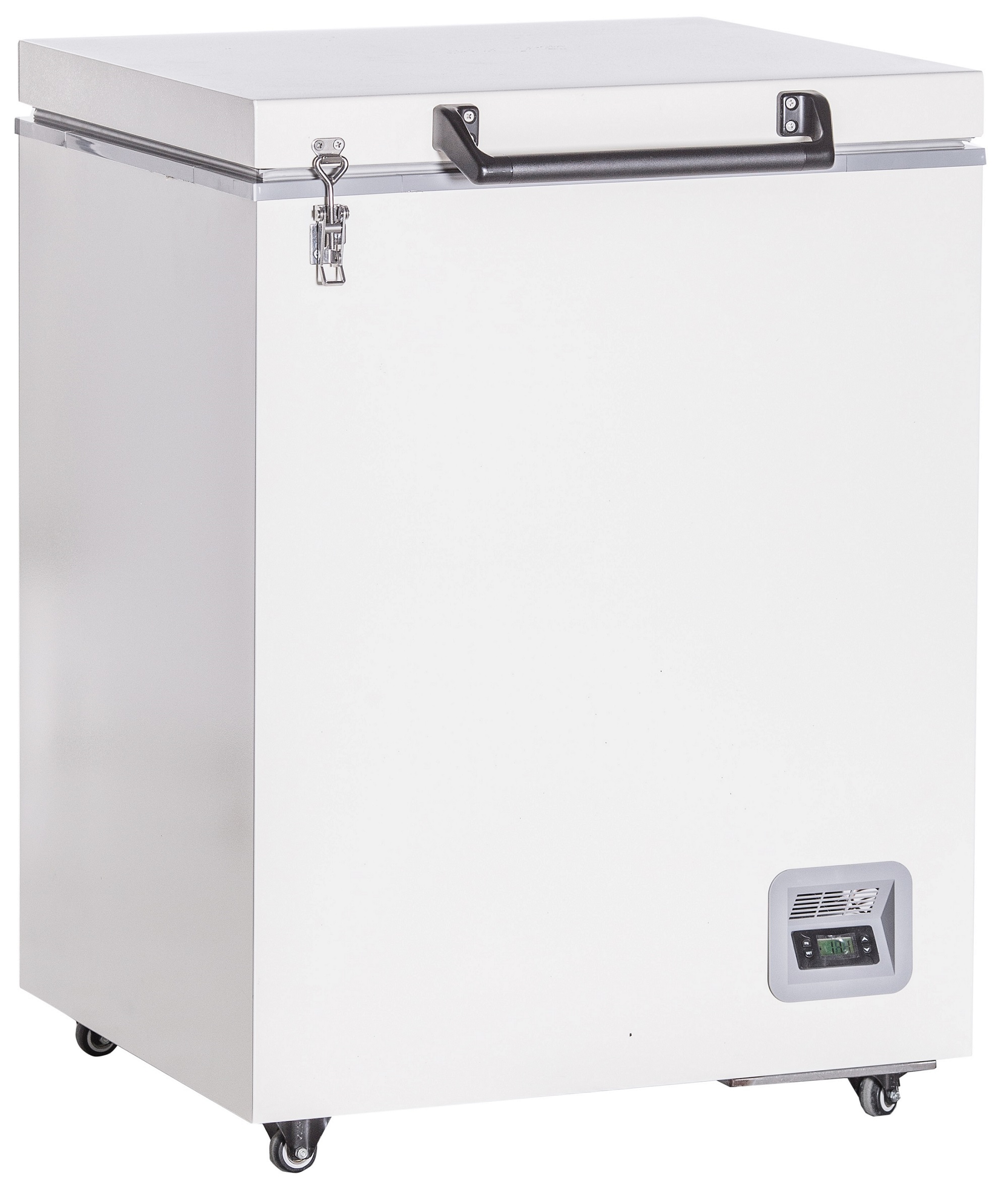

Medical Freezer (-10 ~ -25°C) AM-ADF-25H105

Application

Ideal for long term preservation of virus, germs, vaccines, biological tissues and organs, special food, medicines, reagents etc.

Temperature Control Mode

With the international famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -10~-25°C

High light digital display

High/low temperature alarm, the alarm temperature can be set as needed

Platinum resistance temperature sensor, sensing temperature accurately

Features

1. Wide temperature range :10°C~32°C ambient temperature can reach -10°C~-25°C
2. Accurate Temperature control technology to make the temperature maintain -10°C

~-25°C and accuracy 0.1 °C.

3. SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.
4. High-density polyurethane foam
5. Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
6. Power failure protection: turn on delay of the cooling system when power failure,restart delay protection. l
7. Keyboard lock, password protection to avoid set parameter randomly.
8. Wide available voltage range: 198V~242V.

Features

Safety door lock design to prevent abnormal door open

Wide voltage for AC198V~242V

Mute design for salient needed environment

Digital display with big screen, easy to check

Excellent thermal insulation performance with silicone door seal design (second door seal optional)

Mobile and fixable wheel for move

The box is made of high-quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.

Humanized big handle design, easy for one-man operation

Large digital display for easy of observation

Security Guarantee

Temperature high/low alarm, sensor malfunction alarm

Audible and visible alarm

Keyboard lockable, password protection to prevent change running parameter randomly

Display running parameter with real-time monitoring to guarantee the stability of freezer

Refrigeration System

Imported brand compressor work with R290 refrigerant

High density insulation foam layer with better heat preservation effect

Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption

Performance

Capacity(L): 105L

Temperature Range(°C): -10~-25°C

Ambient Temperature(°C): +10~+32°C

Cabinet Type: Horizontal

Control System

Controller: Microprocessor

Display: Digital Display

Refrigeration System

Compressor: 1

Refrigerant: R290

Cooling Type: Direct Cooling

Defrost Type: Manual

Electrical Data

Power Supply(V/Hz):187~242/50~60; 115/60

Rated Power(W): 120

Electrical Current(A): 1.05

Power Consumption(kWh/24h): 4.2

Dimensions

Interior Dimension(W*D*H): 480×380×665mm

Exterior Dimension(W*D*H): 680×580×935mm

Package Dimension(W*D*H): 740×680×970mm

Net/Gross Weight(approx.): 62/70ks

Container Load(20’/40’/40’H): 48/102/102

Alarm

High/Low Temperature, Sensor Error, Controller Error

Accessories

Caster: Y

Testing Hole/Diameter: 1/25MM

Temperature Recorder: Optional
