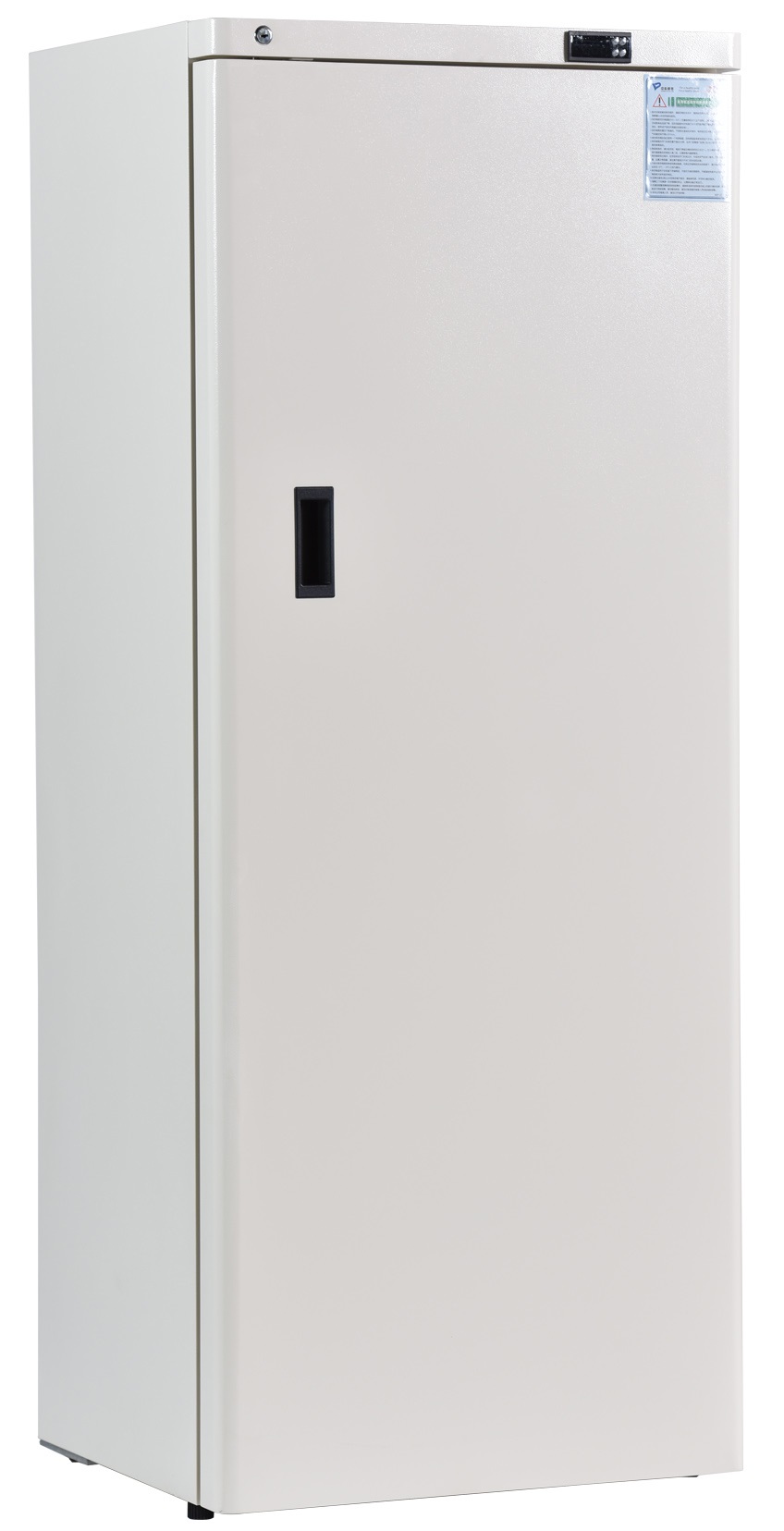

Medical Freezer (-10 ~ -25°C/-30 ~ -40°C) AM-ADF-25V278W

Features

1. Accurate microprocessor controller to ensure consistent cabinet temperature -20~-40°C and increment 0.1°C.
2. Adjustable height of plastic-coated fabric grid, more uniform temperature.
3. Wide available voltage range: 187V~242V.
4. High ambient temperature controller setting password to prevent unauthorized access.
5. 7 drawers to prevent cold air from leaking out when the out-door is opening.
6. Power failure protection: turn on delay of the cooling system when power failure.
7. Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed.

Application

Specially designed to store vaccines, blood plasma, and many other biological materials etc.

Features

Accurate microprocessor controller to ensure consistent cabinet temperature -10 ~ -25°C/-30 ~ -40°C and increment 0.1°C.

Embedded handle, easy for one-man operation.

Adjustable height of plastic-coated fabric grid, more uniform temperature.

Wide available voltage range: 187V~242V.

Chemically stable, CFC-free, commercially available and environmentally safe refrigerant.

Safety

Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, Thermostat failure.

High ambient temperature controller setting password to prevent unauthorized access.

7 drawers to prevent cold air from leaking out when the out-door is opening.

Power failure protection: turn on delay of the cooling system when power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed.

Backup battery to ensure that power alarm for 8 hours after power off.

Humanized Design

4 casters with stopper for easy moving and fixation

Optional test hole, convenient for temperature monitoring

Adjustable shelves with 7 drawers design, maintain the temperature in the cabinet

Built-in lock design, beautiful and safe

Performance

Capacity(L): 278L

Temperature Range(°C): -10 ~ -25°C/-30 ~ -40°C

Ambient Temperature(°C): +10 ~ +32°C

Cabinet Type: Upright

Control System

Controller: Microprocessor

Display: Digital Display

Refrigeration System

Compressor: 1

Refrigerant: R290

Cooling Type: Direct Cooling

Defrost Type: Manual

Electrical Data

Power Supply(V/Hz): 187~242/50~60; 115/60

Rated Power(W): 180W for ADF-25V278W; 185W for ADF-40V278W

Electrical Current(A): 1.5

Power consumption: 1.5kWh/24h for ADF-25V278W; 4.0kWh/24h for ADF-25V278W

Dimensions

Interior Dimension(W*D*H) (mm): 480×415×1460

Exterior Dimension(W*D*H) (mm): 659×600×1694

Package Dimension(W*D*H) (mm): 710×650×1800

Net/Gross Weight(approx.) (kg): 110/120

Alarm

High/low temperature, power failure, sensor error, thermostat failure, door ajar

Accessories

Caster: 4

Temperature Recorder: Optional
