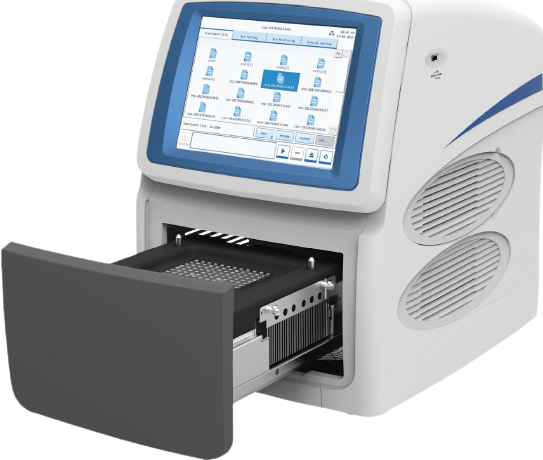

AR-96E/96R Real-Time PCR Analyzer

Maximize your real-time PCR capabilities with the Real-Time PCR Analyzer AR-96E/96R. Engineered for precision and efficiency, this analyzer delivers accurate and reliable results for a wide range of molecular biology applications. With advanced features and intuitive operation, the Real-Time PCR Analyzer AR-96E/96R ensures seamless performance in research and diagnostic settings. Elevate your real-time PCR experiments with the Real-Time PCR Analyzer  AR-96E/96R – your trusted solution for high-quality molecular analysis.


Real-Time PCR Analyzer AR-96E/96R


96E/96R Real-Time PCR System is designed to meet the experimental needs of high-end laboratories. With the 6 (96E)-/4 (96R)- fluorescence channels, 96E/96R can process 96 samples in one run. Various downstream applications including multiplex gene qualitative detection, quantitative analysis, SNP analysis, and melting curve analysis, can be carried out easily with the powerful and efficient temperature control system and fluorescence system,easy-to-use software, user-friendly operational designs.

Technical Specifications

Model 96E 96R
Throughput 96-well
Fluorescence Channels 6 4
Compatible Fluorophores Channel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green

Channel 2: HEX, VIC, TET, JOE

Channel 3: ROX, Texas Red

Channel 4:Cy5

Channel 5: Alexa Fluor 680

Channel 6: FRET

Channel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green

Channel 2: HEX, VIC, TET, JOE

Channel 3: ROX, Texas Red

Channel 4:Cy5

Light Source High-brightness, long-life and maintenance-free LED light source,excitation from the top
Detector Photodiodes (PD),top scanning
Heating Rate Maximum heating ramp rate ≥6.1°C/s;

Average heating ramp rate ≥4.5°C/s

Cooling Rate Maximum cooling ramp rate ≥5.0°C/s;

Average cooling ramp rate ≥2.8°C/s

Temperature Uniformity ±0.1°C
Temperature Accuracy ≤0.1°C
Special Temperature

Setting Function

Support thermal gradients PCR, Long PCR, Touch Down PCR
Suitable Consumables 0.2ml 96-well plates, 8-tube strips,single tubes(clear,frosted and white)
Sample Testing Linearity

And Repeatability

Linear Correlation: /r/ ≥0.999

Repeatability: cycle threshold (Ct) value CV ≤0.5%

Software Analysis Qualitative analysis, absolute quantitative analysis,relative quantitative analysis, end point fluorescence analysis,melting curve analysis,and genotyping analysis, etc.
Control Method Stand-alone operation: 10.4-inch touchscreen control;

Cloud-enabled: PC software control via direct connection or LAN (local area network)

Power Failure Protection Automatic recovery of the experiment and other functions when the power is on again after cutting off, without waiting for the power-on of the computer or sofaware control
Date Storage and Transmission A single machine can store more than 1000 experimental data files, which can be imported and exported via USB disks
Reporting Function Built-in experiment report templates for a variety of industries; Fully open universal reporting of which the contents and formats can be customized
Operating System for PC Windows 7,Windows 10
Power Supply and Power Consumption AC 100-240V,50-60HZ;600VA
Weight 30Kg
Instrument Dimension 355x475x484mm (WxLxH)
