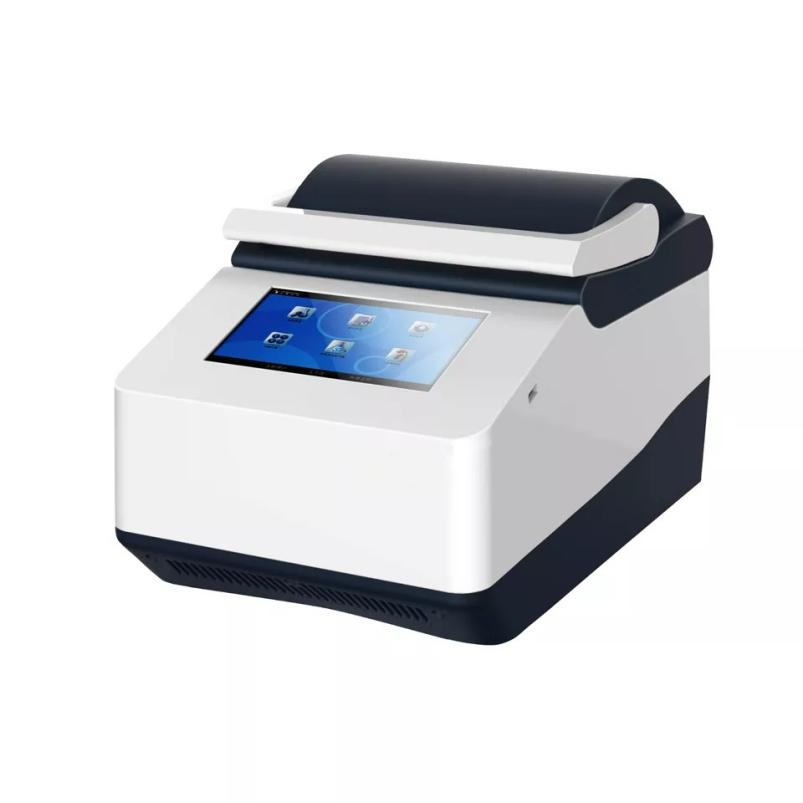

AR-96T PCR Analyzer

Unlock the full potential of your PCR experiments with the PCR Analyzer AR-96T. Engineered for precision and efficiency, this analyzer offers reliable results for a variety of molecular biology applications. With advanced features and intuitive operation, the PCR Analyze AR-96T ensures seamless performance in research and diagnostic settings. Streamline your PCR workflow and elevate your molecular analysis with the PCR Analyze AR-96T – your trusted solution for high-quality results.


PCR Analyzer AR-96T


  1. Beeping alert function.
    2. Automatic calculation and display of gradient temperatures for each column.
    3. Graphical interface showing PCR running process in real time.
    4. Unlimited number of programs with USB storage.
    5. Power failure protection: automatic recovery of the experiments when the power is on again after cutting off.
    6. Pre-stored standard experiment templates, without tedious programming.
    7. One-click start-up of the experimental program, quick and easy.

Technical Specifications

Thermo block Aluminum
Suitable Consumables 0.2mL single tubes, 0.2mL 8-tube strips, 0.2mL skirted / semi-skirted / skirtless 96-well plates.
Reaction Systems 0~100μL
Module Temperature Range 4.0℃~ 99.9℃
Temperature Control Mode Tube Mode, Block Mode
Gradient Module Up to 12 gradients in one run
Gradient Temperature Span 1 ~ 40℃
Gradient Temperature Range 35 ~ 100℃
Temperature Range of Heater Lid 40 ~ 110℃
Temperature Uniformity ±0.2℃
Temperature Accuracy ±0.1℃
Heating & Cooling Rates Up to 5.5℃/s
Steps Unlimited
Cycles Up to 99
Increment / Decrement Time 1s ~ 10min
Increment / Decrement Temperature 0.1~5℃, Touchdown PCR assay available
Program Storage > 1000 sets
UI 7-inch TFT true-color LCD touchscreen, 800×480 resolution
Structural Design The instrument is designed with air ducts in the front and back, for multiple units to be placed closely in parallel to save
laboratory space.
Characteristic 1. Self-pressurized heater lid with no need to adjust its height, compatible with a variety of consumables;
2. Individual folders available, for quick access to the programs
Size and Weight 260mm*400mm*260mm(W*D*H),11 kg
Power supply AC 100~240 V, 50~60 Hz, 600 VA
