Experience precision and reliability with our ANESTHESIA MACHINE​ AM-6100. Engineered for optimal patient care, this advanced machine offers intuitive controls and precise gas delivery for anesthesia management. With its ergonomic design and customizable features, it ensures seamless operation in medical facilities. Trust in the AM-6100 for safe and efficient anesthesia delivery. Elevate your anesthesia procedures with our state-of-the-art ANESTHESIA MACHINE​ AM-6100.

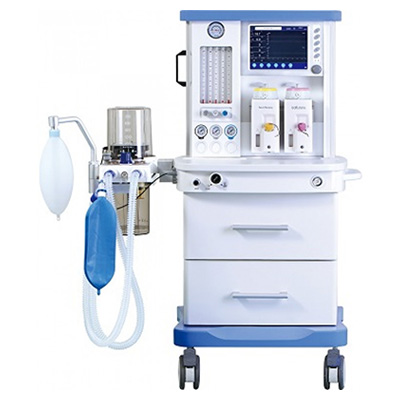

AM-6100 Anesthesia System

Friendly Powerful Reliable


The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 5 modes: IPPV; A/C; PCV; SIMV; SIGH.

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 3,000 units installed in the world.


l 10.4” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l High precision flow meter, instantly know the fresh gas flow to your patient.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

l Vital sign monitor and Anesthetic gas monitor are optional.

l ETCO2 module is optional.


l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

l Low O2 pressure alarm and N2O cut-off protection.


Ventilation modes: IPPV; A/C; PCV; SIMV; SIGH; MAUN
Ventilator parameter ranges
Flow meter O2(0.1-10L/min)
Rapid oxygen supply 35L/min-75L/min
Tidal volume(Vt) 0, 20 mL ~ 1500 mL
Frequence(Freq) 1bpm ~ 100 bpm
I/E 4:1~1:8
PEEP 0cmH2O ~ 30 cmH2O
Pressure triggering sensitivity(PTr) -20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr) 0.5 L/min ~ 30 L/min
Pressure control (PC) 5 cmH2O ~ 60 cmH2O
SIGH 0(off)  1/100 ~ 5/100
Apnea Ventilation OFF,5 s ~ 60 s
Pressure Limit 20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq) 0 /min ~ 100 /min
Tidal volume(Vt) 0 mL ~ 2000 mL
MV 0 L/min ~ 100 L/min
Oxygen concentration 15 % ~ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
SizeWooden case packing size:L 770*W 890*H 1535mm , GW:151KG ; NW:91.2KG

Alarm and protection

The AC power failure alarm Power failure or no connection
Internal battery backup low voltage alarm <11.3±0.3V
No tidal volume ≤5Ml within 6s
High oxygen concentration alarmLow oxygen concentration alarm 19%-100%18%-99%
High Airway  pressure alarmLow Airway  pressure alarm

High Minute Volume alarm

Low Minute Volume alarm

Continuous Pressure alarm


Adult(5L/min-20L/min) Paed(1L/min-15L/min


(PEEP+1.5kPa) over 16s

Suffocation warning 5s-60s no spontaneous ventilation
The maximum limited pressure <12.5 kPa
Fan errorOxygen deficit Show on screenShow on screen
Working conditions
Gas source O2,N2O,AIR
Pressure 280kPa-600kPa
Voltage 100-240V
Power frequency 50/60Hz
Input power 85VA

20170428062151 35026 20170428062216 38083 20170428062325 32384 20170428062357 90395

Anesthesia gas Adjustable scope % (volume percentage)
Halothane 0 ~ 5
Enflurane 0 ~ 5
Isoflurane 0 ~ 5
Sevoflurane 0 ~ 8
